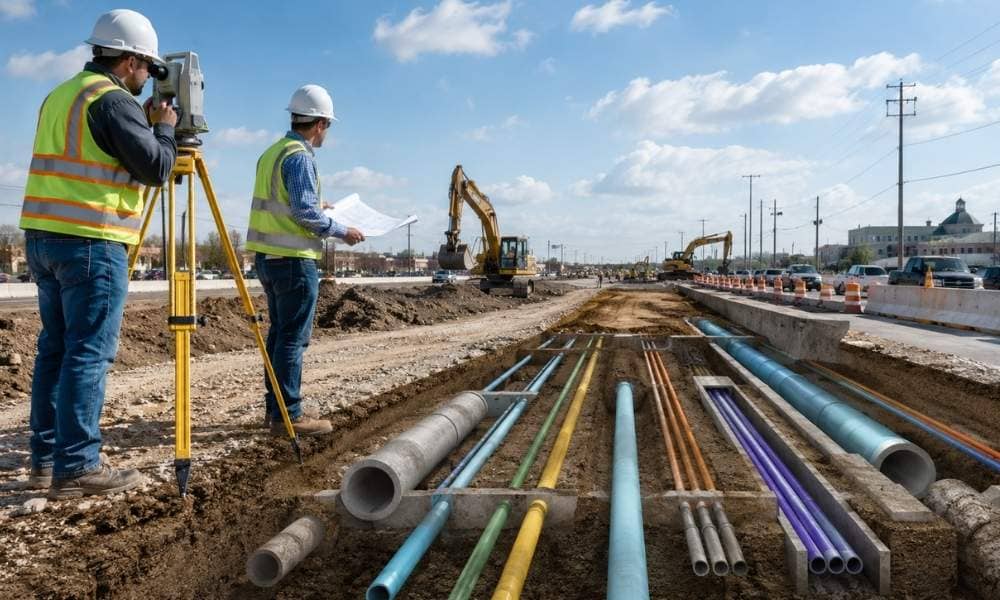

Texas keeps growing. Highways are widening. Toll roads are stretching farther out. Rail lines and pipeline corridors are pushing into areas that used to be open land. All of this means one thing for builders: more utility relocations, and more surprises hiding underground.
Old records don’t always show where a gas line, fiber cable, or water main actually sits today. That gap between what’s on paper and what’s in the ground can stall a project fast. Survey mapping closes that gap. It gives builders a clear, current picture of what’s really down there, so they can plan around it instead of reacting to it.
The Hidden Cost of Utility Conflicts on Infrastructure Expansion Projects
A utility conflict rarely shows up at a convenient time. It usually surfaces once equipment is already on site, footings are staked, or a crew starts trenching.
At that point, the cost is not just the fix. It’s the ripple effect. A change order goes out. Engineers redesign part of the layout. Crews sit idle while everyone waits on a relocation schedule from the utility owner. On a project near an active highway widening or toll road expansion, that relocation schedule may already be packed with work for the state project itself, which pushes your timeline back even further.
This isn’t a rare problem. The Common Ground Alliance, which tracks damage to buried utilities across the U.S., logged nearly 197,000 reported incidents of utility damage in a single recent year. Roughly three out of every four of those incidents trace back to the same handful of root causes, year after year. Outdated or incomplete utility information is consistently one of them.
Survey mapping won’t erase every risk. But it moves the conflict earlier, into the design phase, where it’s cheaper and faster to solve.
What a Utility Composite Base Sheet Actually Shows Builders
Most utility information doesn’t come from one place. Gas companies have their own records. Water and sewer come from the city. Fiber and telecom providers keep their own maps. Storm drain data might sit with the county.
A composite base sheet pulls all of it into one drawing. Instead of flipping between five different sources, builders and designers work from a single map that shows how everything overlaps.
This matters most on sites near active infrastructure corridors, where multiple utility owners are often relocating lines at the same time. A composite sheet shows where a new gas line might cross an existing water main, or where a fiber relocation could land right where you planned a footing. It also surfaces right-of-way issues early, before they force a redesign. Seeing it all in one place is what lets a design team catch conflicts before they become field problems.
Matching Utility Data Confidence Levels to Project Risk
Not all utility data is equally reliable, and builders need to know the difference.
Some information comes only from record drawings, meaning it was mapped from old plans and never checked in the field. Some come from a designated survey, where a locator marks approximate positions based on signals and utility maps. The most reliable data comes from field-verified locations, where the utility has actually been exposed and measured.
A small commercial build on a quiet lot might be fine with record-drawing data. A project sitting next to an active rail corridor or pipeline relocation, where the ground has likely changed in the last few years, needs a higher confidence level. Matching the level of survey detail to the actual risk of the site is one of the simplest ways to avoid paying for a mistake later.
Why Utility Company Records and As-Built Conditions Rarely Match
Here’s something builders don’t always expect: utility records are often wrong, and not because anyone was careless.
Lines get repaired without an updated drawing. Old segments get abandoned in place instead of removed, so they still show up underground even though no one uses them anymore. A quick emergency fix years ago might have shifted a pipe two feet from where it was originally installed, and that shift never made it back into the official map.
This is why “as recorded” and “as found” are two different things. Survey mapping that includes field verification is what catches this gap. It doesn’t just trust the utility company’s drawing. It checks what’s actually there.
Sequencing Utility Relocations Before Site Work Begins
Timing is everything on a site near active infrastructure work. If a utility relocation is happening at the same time as your grading or foundation work, you need to know the order of operations before anyone shows up with equipment.
Survey mapping gives the project team a real basis for that schedule. It shows which lines need to move, where they’re moving to, and which ones sit in direct conflict with planned excavation or foundation work. From there, builders can sequence the project so utility crews finish their relocation before grading starts in that area, instead of both crews showing up on the same day with conflicting plans.
On sites next to a highway widening or toll expansion, this sequencing step often makes or breaks the schedule. Utility owners are usually juggling relocation work for the public project too, so knowing exactly when and where they’ll be on your site lets you plan around their timeline instead of guessing at it.
